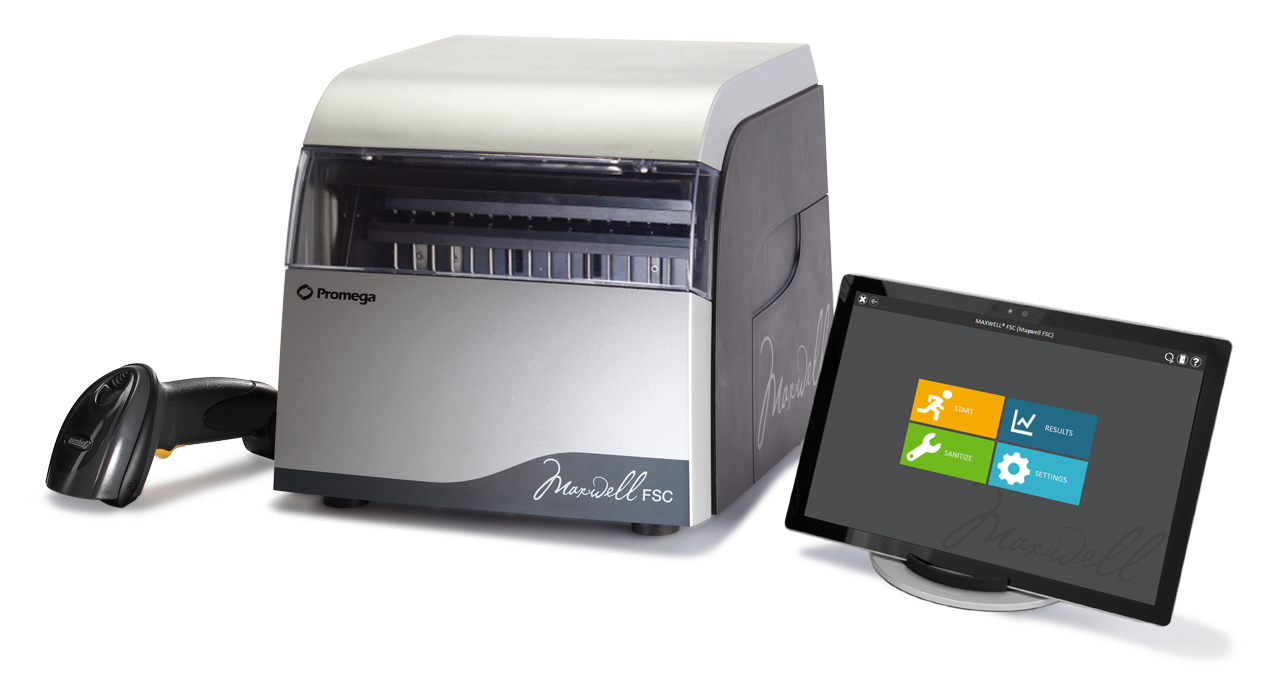

Maxwell® FSC Instrument
Benchtop Instrument for Automated DNA Extraction from Casework Samples
- High-quality DNA extraction with minimal hands-on time
- Bar code reader for simplified data entry
- Intuitive software and touch screen interface
Catalog Number:
Size

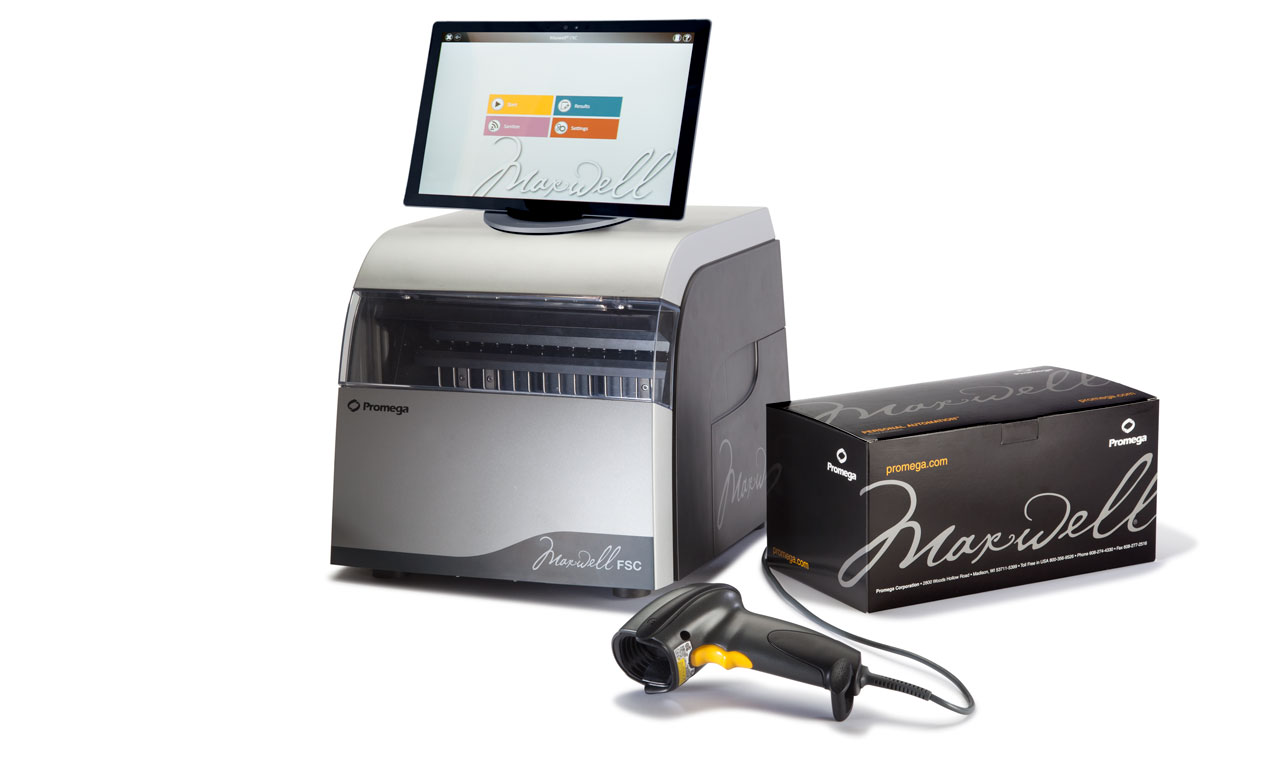

Catalog Number: AS4600
High-Quality DNA Extraction fromCasework Samples
The Maxwell® FSC Instrument, along with DNA IQ™ chemistry, offers easy-to-use, consistent, automated nucleic acid extraction from casework samples such as blood stains, semen stains, hairs, cigarette butts, tissues and trace DNA samples. Automated DNA extraction saves laboratories time and labor costs and frees staff to work on casework analysis.
No clogging worries with a paramagnetic particle mover
The Maxwell® FSC is a magnetic particle mover, not a liquid handler. It delivers minimal risk of cross-contamination because no liquid handling or splashing happens during processing of samples. The cartridges come prefilled with reagents and paramagnetic particles, ready for your samples.
Streamlined Laboratory Workflow
The Maxwell® FSC Instrument automates DNA extraction, saving the laboratory time and labor costs while freeing up staff to work on casework analysis.

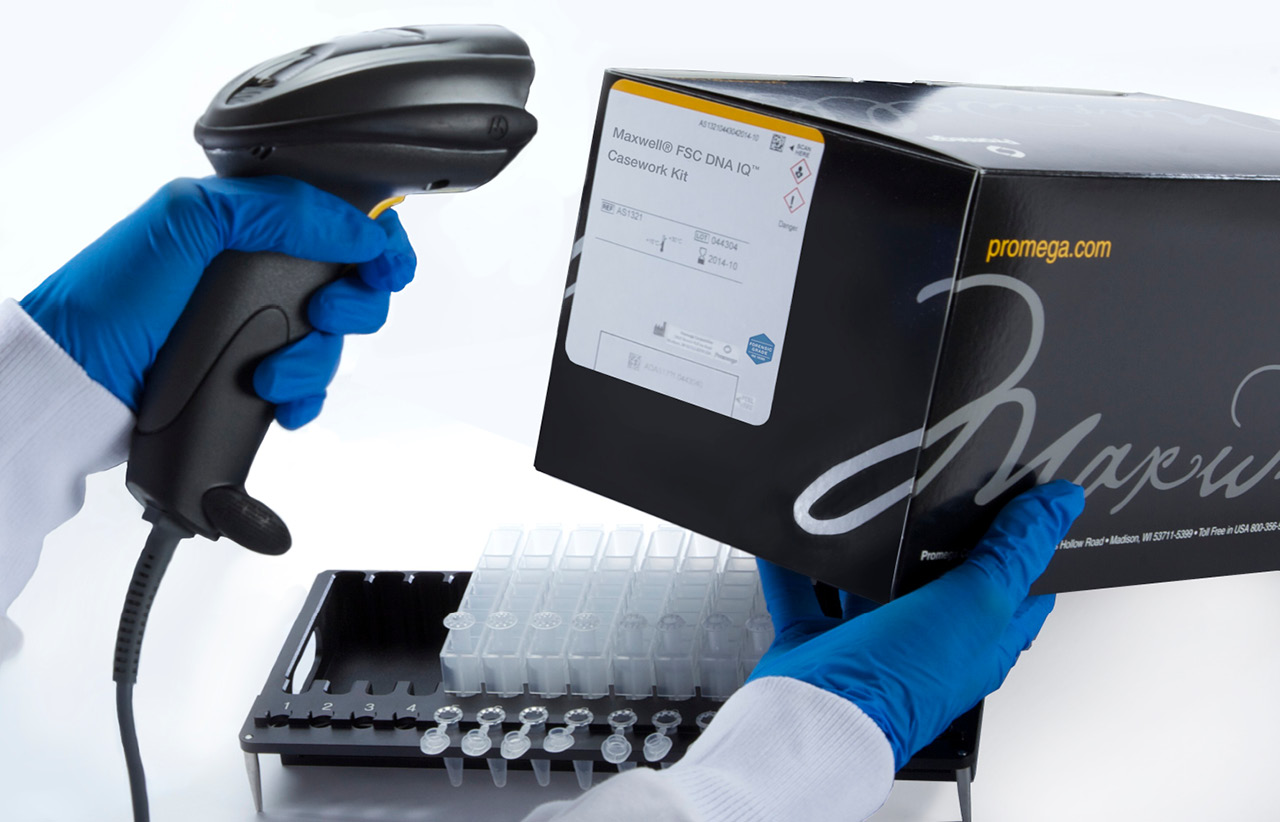

Track Samples Easily
The integrated barcode reader records important information such as sample ID, kit ID and kit lot number.
Easy to Use
The intuitive touch-screen interface and preprogrammed protocol lets you easily set up your purification run.
Reduce Processing Time

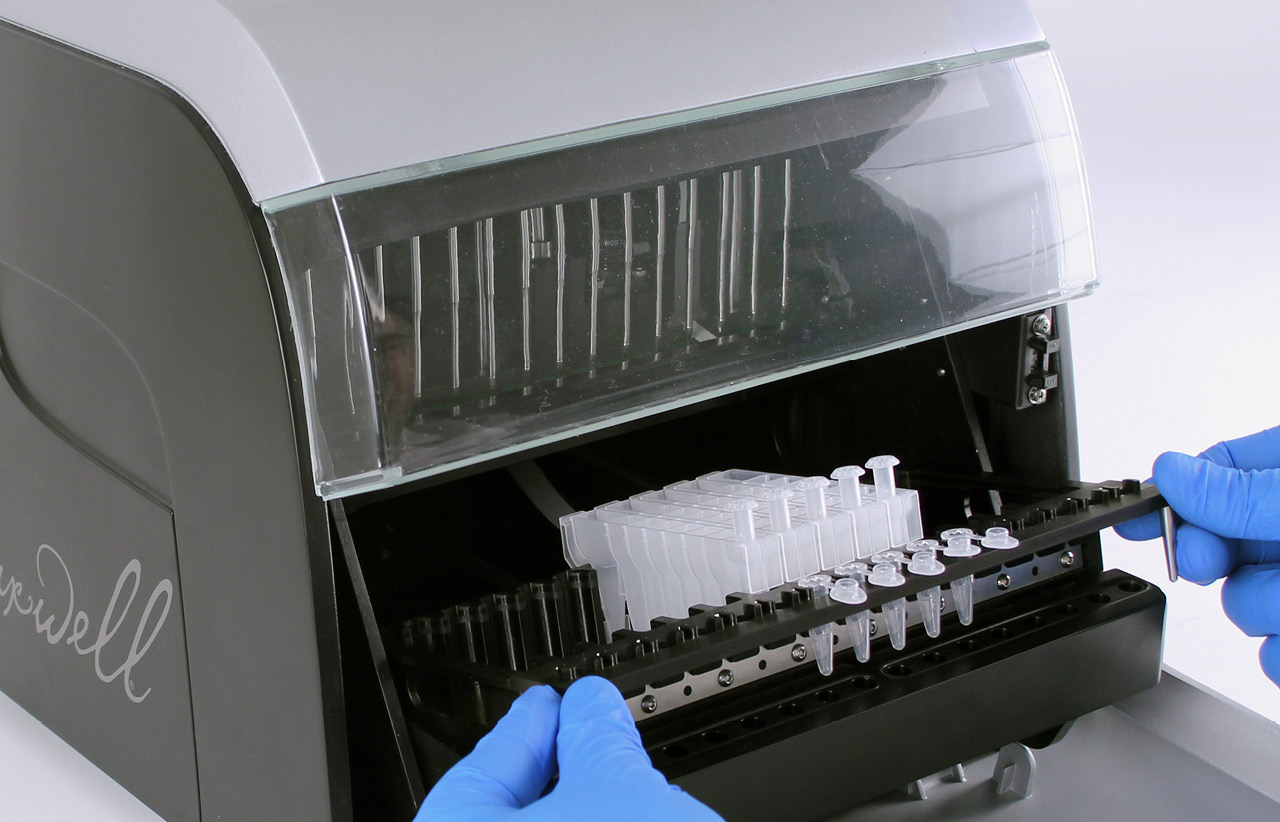

The prefilled reagent cartridges are ready to use. Simply add your sample, place the cartridges in the Maxwell® FSC and press "Start".
Extract DNA from ChallengingCasework Samples

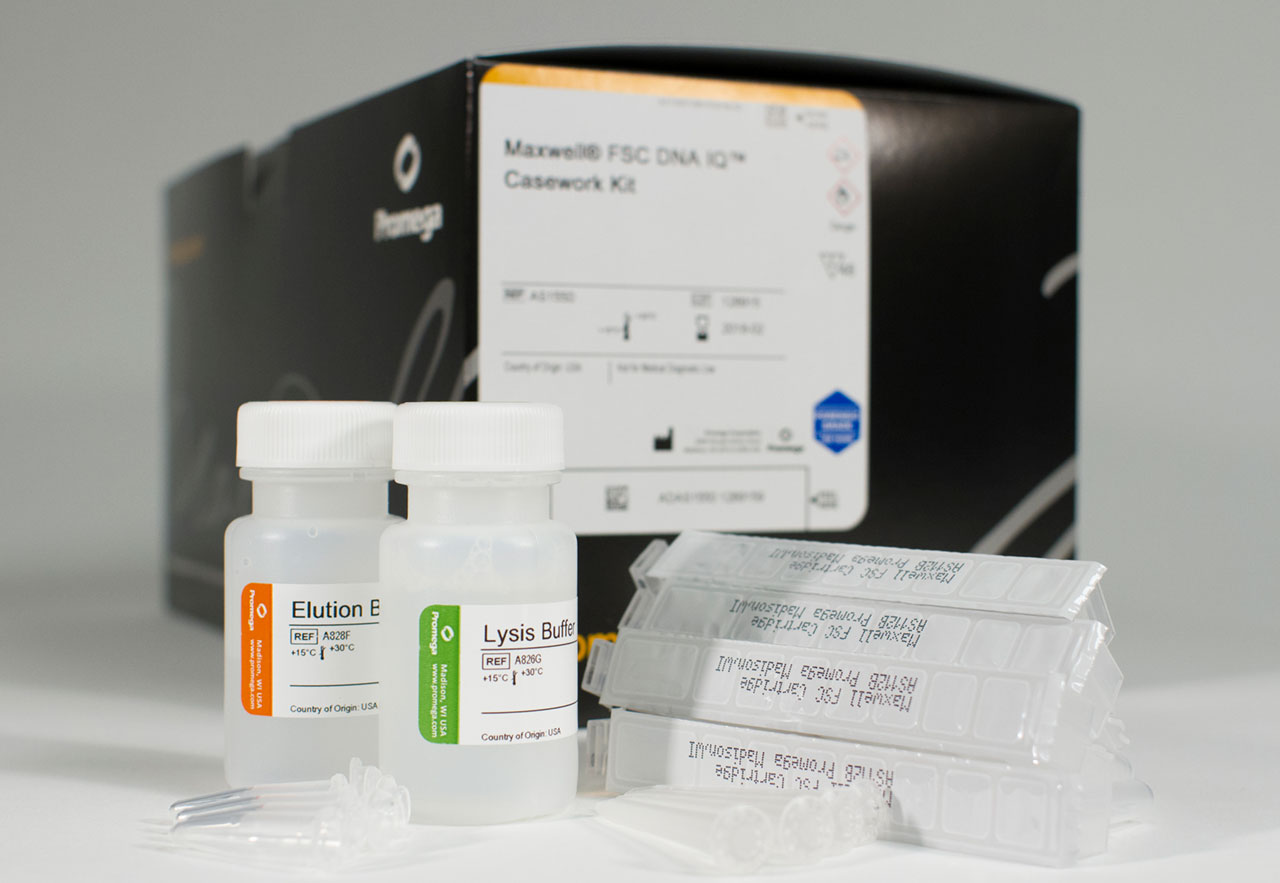

Uses the proven DNA IQ™ reagents and improved spin basket design to purify DNA from casework samples.

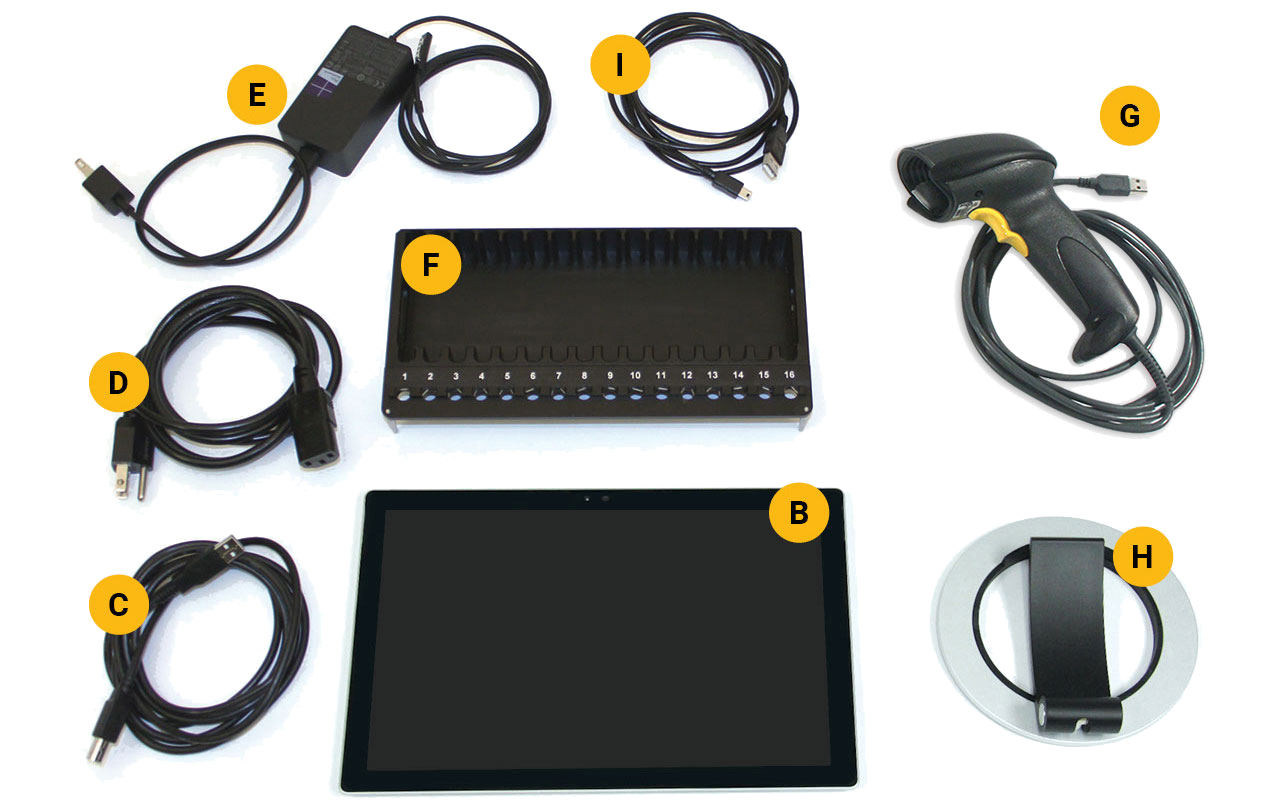

Instrument Standard Components

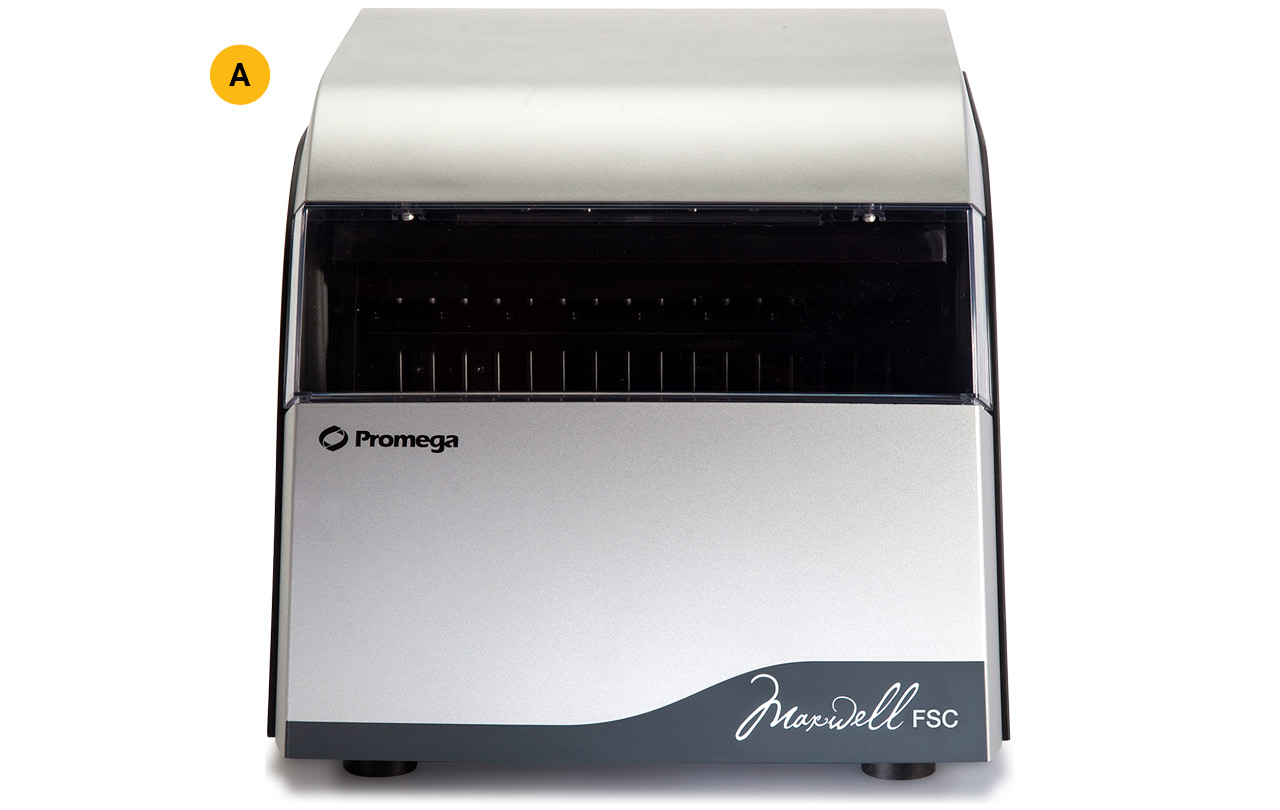

A. Maxwell® FSC Instrument
B. Tablet PC preloaded with Maxwell® FSC Application Software
C. USB cable for connection of the Maxwell® FSC Instrument to the Tablet PC
D. Power Cable for Maxwell® FSC Instrument
E. Power Cords for Tablet PC
F. Maxwell® Sample Concentrator Deck Tray
G. Bar Code Reader
H. Tablet PC Holder
I. USB cable - Maxwell® FSC Instrument to the Tablet PC
UV Bulb (installed)
Quick Start Guide
Setup Guide
Accessories Available Separately
Additional deck trays, plungers and bar code reader are available for purchase separately.
Services & Support
One Call Supports It All
One Call Supports It All
We can support you with:
- Virtual and on-site consultations
- Data analyses
- Summary reports
Maintenance
Maintenance
If you want regular servicing and maintenance, we've got you covered. In addition to standard maintenance contracts, we also offer extended service packages to keep your instrument running smoothly beyond the warranty period.
Minimal Downtime
Minimal Downtime
To ensure minimal downtime, we offer:
- Field Support
- Loaner Programs
- Service Packages
- IQ and OQ Packages
Warranty Service Options
| Warranty Benefit | Standard | Premier |
|---|---|---|
| Period | 1 Year | 1 Year |
| Parts and Labor | Yes | Yes |
| Field Support* | No, available for purchase separately | Yes, 2 business days |
| Loan Instrument** | Yes, 5–7 business days | Yes, 1–2 business days |
| Annual Preventive Maintenance | No, available for purchase separately | Yes, includes one preventive maintenance service |
Service Agreement Options
| Service Agreement Benefit | Standard | Premier |
|---|---|---|
| Period | 1-, 2-, or 3-year service agreements (renewable) | 1-, 2-, or 3-year service agreements (renewable) |
| Parts and Labor | Yes | Yes |
| Field Support* | No, available for purchase separately | Yes, 2 business days |
| Loan Instrument** | Yes, 5–7 business days | Yes, 1–2 business days |
| Annual Preventive Maintenance | No, available for purchase separately | Yes, once every 12 months |
*May not be available in all countries; service response time may vary by geographical locations.
**The response time is calculated from when Technical Services determines a loaner instrument to be necessary following triage of the initial incident.
Instrument Specifications
| Processing Time | 30 minutes |
| Number of Samples | Up to 16 |
| Weight | 24.2lb (11kg) |
| Dimensions | 13W × 13.6D × 11.8H inches (330.2 × 345.2 × 299.7mm) |
| Power Requirements | 100–240VAC, 50/60Hz, 2.5A |
| Fuse | 250VAC, 2.5A, low breaking capacity, time-lag fuse (AC250V, T2.5AL, 5 × 20mm) |
| UV Bulb | Average lifetime approximately 6,000 hours, length 135.9mm, diameter 16mm, 4W, 0.17A current, 29V, spectral peak F 253.7, UV output 0.9W |
Specifications
Catalog Number:
SDS
Search for SDSCertificate of Analysis
Use Restrictions
Not For Medical Diagnostic Use.Storage Conditions
U.S. Pat. Nos. 7,721,947 and 7,891,549, European Pat. No. 2033144 and Japanese Pat. Nos. 5519276 and 5654519.
